Magnetostrictive level measurement
MS
- Continuus Level Monitors
- Float Level Monitors(continuous or step signal output)
Main application
Chemical measurement and high precision measurement of blending tanks
Main feature
Based on the Wiedemann effect
High accuracy (±1mm/±0.1%F.S.) and high resolution
Low cost

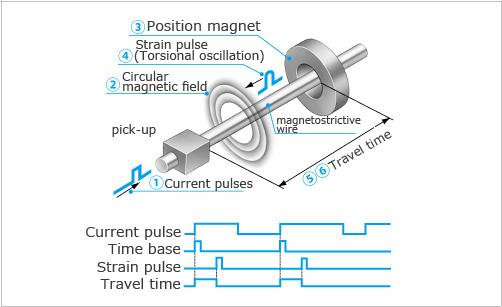

Principle of Operation
Wiedemann effect
①Current pulse is applied to one end of magnetostrictive wire.
↓
②Circular magnetic is generated, encompassing the entire wire.
↓
③ Magnetic field from the position magnet and the circular magnetic field interact.
↓
④The interaction produces a strain pulse.
↓
⑤ Travel time of the strain pulse to the pick-up is proportional to the distance the pulse travels.
↓
⑥ The time elapsed is measured multiple times.
↓
Remarkably accurate measurement is ensured.
