Miniature Float Sensor
SH
- Level Switches
- Liquid float level sensors
Main application
Integration into small mass produced equipment, level measurement of virtually any liquidss
Main feature
Easy installation on tank side using threaded process connection.
Operational for any liquids of specific gravity >0.6.
Rotating the sensor reverses switch operation
Wetted parts are in corrosion resistant SCS14 (316SS equivalent)

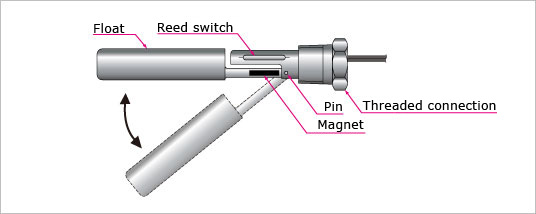

Principle of Operation
The float incorporates a magnet, and pivots on the pin. Reed switch is placed at the end of the process connection assembly. The switch closes when the float approaches, and opens as the float leaves the switch.
